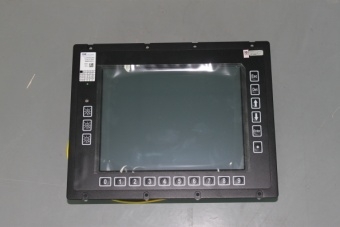

Driver display unit DDU

Technical standard and value of products:
LCD screen: 10.4 inches TFT LCD screen
Display area (mm): 211.2 (H) *158.4 (V)
Resolution: 800 * 600
Max color: 260K
Visual angle: -80 to 80 degrees (H), -80 to 60 degrees (V)
Brightness (cd/mm2): 700
Contrast: 700
Backlight: LED
Average time between failures: 40000 hours
Power supply: 110V DC
Touch screen: resistor type
Memory: 1G
Storage device: 4G byte electronic hard disk or On board 4/8GB flash Chip
Interface: MVB; RS232; RS485; USB; Ethernet interface
Outline size (mm): 310 x 246 x 110 (W x H x D)
Working temperature: -30 ~ +70 (pre heating can work at -40 centigrade)
Input voltage: DC110V (-30% ~ +25%)
Power: 60W
Product description:
Driver display unit DDU is responsible for real-time display of locomotive running information and normal equipment working state, configuration of locomotive network parameters and maintenance and troubleshooting of information functions
