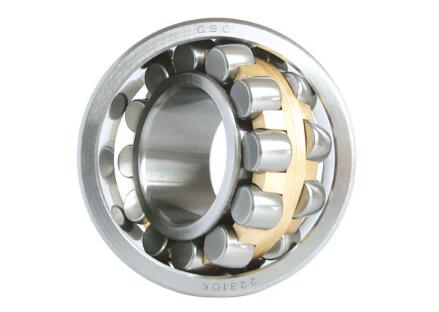

Spherical roller bearing
      Promulgator ：LX      Time：2019-04-18

Bearing Tpye Dimensions（mm） Rated load（kN） Weight (kg)
Basic type Transform d D B r min Cr Cor
Cylindrical hole Tapered hole W33
22205CA 22205CAK W33 25 52 18 1 35.7 36.7 0.18
22206CA 22206CAK W33 30 62 20 1 50.5 55.1 0.28
22207CA 22207CAK W33 35 72 23 1.1 68.5 78.9 0.43
22208CA 22208CAK W33 40 80 23 1.1 80 91 0.54
22209CA 22209CAK W33 45 85 23 1.1 80 92 0.59
22210CA 22210CAK W33 50 80 23 1.1 83 98 0.63
22211CA 22211CAK W33 55 100 25 1.5 99 116 0.86
22212 A 22212CAK W33 60 110 28 1.5 119 142 1.17
22213CA 22213CAK W33 65 120 31 1.5 152 190 1.59
22214CA 22214CAK W33 70 125 31 1.5 152 192 1.68
22215CA 22215CAK W33 75 130 31 1.5 164 210 1.72
22216CA 22216CAK W33 80 140 33 2 171 221 2.13
22217CA 22217CAK W33 85 150 36 2 212 273 2.71
22218CA 22218CAK W33 90 160 40 2 248 327 3.52
22219CA 22219CAK W33 95 170 43 2.1 284 381 4.28
22220CA 22220CAK W33 100 180 46 2.1 316 424 5.13
22222CA 22222CAK W33 110 200 53 2.1 413 576 7.49
22308 22308K W33 40 90 33 1.5 116 122 1.06
22308CA 22308AK W33 40 90 33 1.5 120 135 1.04
22309 22309K W33 45 100 36 1.5 143 155 1.43
22309CA 22309CAK W33 45 100 36 1.5 157 186 1.48
22310 22310K W33 50 110 40 2 172 189 1.99
22310CA 22310CAK W33 50 110 40 2 178 206 1.88
22311 22311K W33 55 120 43 2 204 228 2.47
22311CA 22311CAK W33 55 120 43 2 208 241 2.52
22312 22312K W33 60 130 46 2.1 229 256 3.06
22312CA 22312CAK W33 60 130 46 2.1 238 278 3.05
22313 22313K W33 65 140 48 2.1 248 284 3.73
22313CA 22313CAK W33 65 140 48 2.1 265 315 3.75
22314 22314 K W33 70 150 51 2.1 310 351 4.55
22314CA 22314CAK W33 70 150 51 2.1 300 363 4.6
22315 22315K W33 75 160 55 2.1 312 360 5.5
22315CA 22315CAK W33 75 160 55 2.1 351 439 5.55
22316 22316K W33 80 170 58 2.1 382 440 6.54
22316CA 22316CAK W33 80 170 58 2.1 395 499 6.54
22317CA 22317CAK W33 85 180 60 3 433 547 7.38
22318CA 22318CAK W33 90 190 64 3 488 631 8.81
22319CA 22319CAK W33 95 200 67 3 537 696 10.2
22320CA 22320CAK W33 100 215 73 3 606 792 13
23024CA-2CS —— W33 120 180 46 2 296 482 4.08
BS2-2208-2CS —— W33 40 80 28 1.1 80 91 0.63
BS2-2211-2CS —— W33 55 100 31 1.5 99 116 1.03
BS2-2216-2CS —— W33 80 140 40 2 171 221 2.56
BS2-2218-2CS —— W33 90 160 48 2 248 327 4.09
The tapered bore bearing in the above products can provide the adapter sleeve at the same time.
