HXD1 electric locomotive mechanical room equipment layout

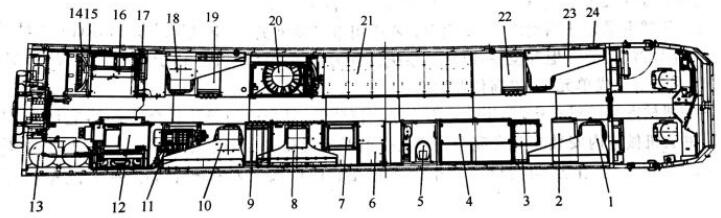

1--traction fan; 2--pressing iron; 3--battery charger; 4--low voltage electrical cabinet; 5--bathroom (only A car); 6--cloakroom; 7--signal cabinet ; 8 - auxiliary transformer cabinet; 9 - brake car iron; 10 - traction fan; 11 - main compressor; 12 - air brake cabinet; 13 - total air cylinder; 14 - rerailer; 15--grounding rod; 16--tool cabinet (B-car is equipped with microwave oven and refrigerator); 17--bed storage device (only B car); 18--tracting fan; 19--pressing iron; 20- -Cooling tower; 21--main converter cabinet; 22--pressing iron; 23--tracting fan; 24--vehicle wireless communication equipment (A car OCU and CPM equipment, B car CIR equipment)。
