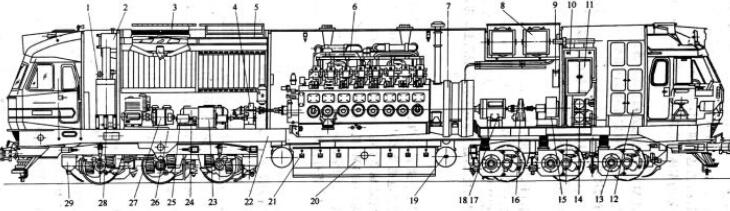

DF8 diesel locomotive overall layout
1--Preheating boiler; 2--expansion water tank; 3--cooling fan; 4--rear gearbox; 5--heat sink; 6--diesel engine; 7--tracting generator; 8--brake resistor Cabinet; 9--excitation rectifier cabinet; 10--silicon rectifier cabinet; 11--boxing box; 12--electric cabinet; 13--traction generator; 14--distribution valve; 15--traction generator fan; 16--front gearbox; 17 exciter; 18--starter generator; 19--total air cylinder; 20--fuel tank; 21--battery box; 22--body frame; 23--traction motor Fan; 24 - oil heat exchanger; 25 - start oil pump; 26 - air compressor unit; 27 - hydrostatic oil heat exchanger; 28 - preheat boiler control cabinet; 29 - sand box.
